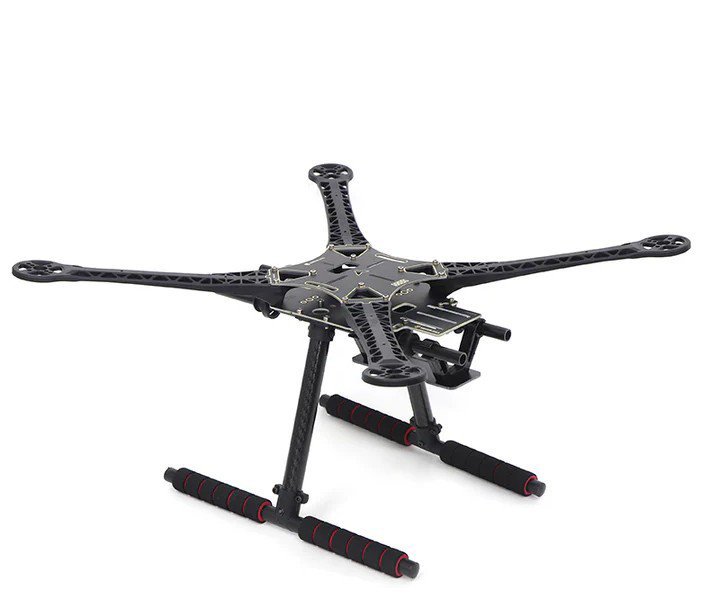

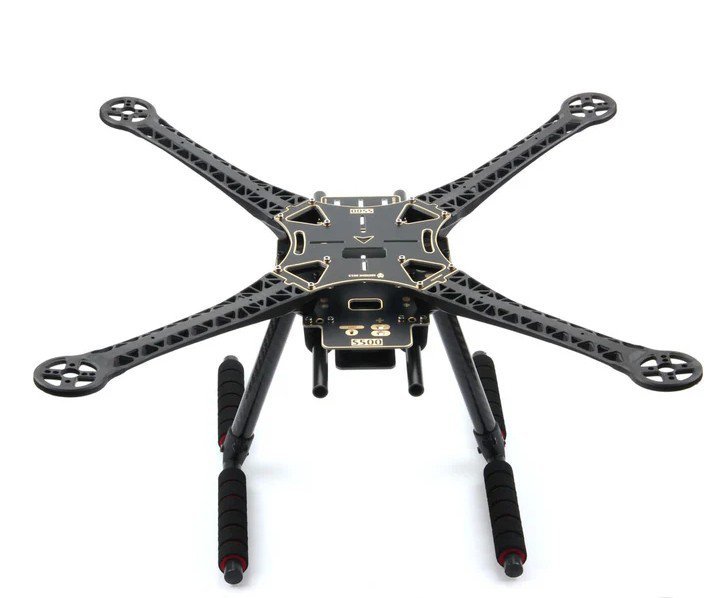

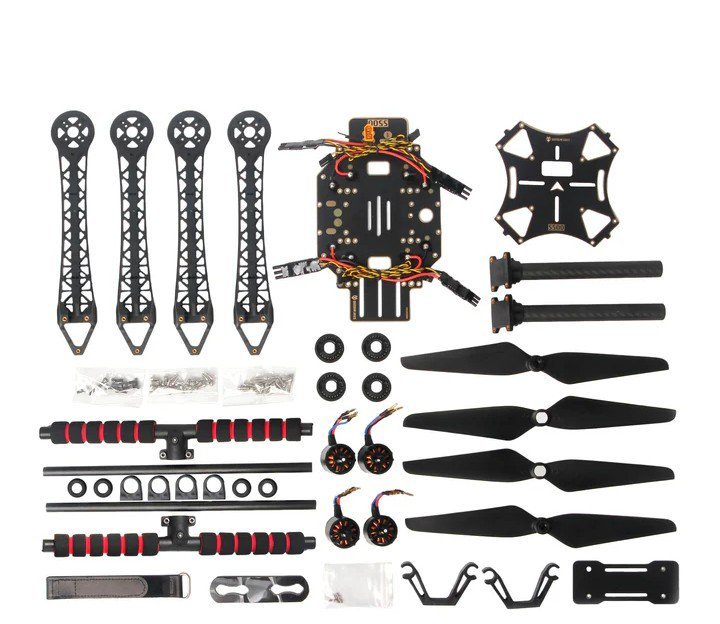

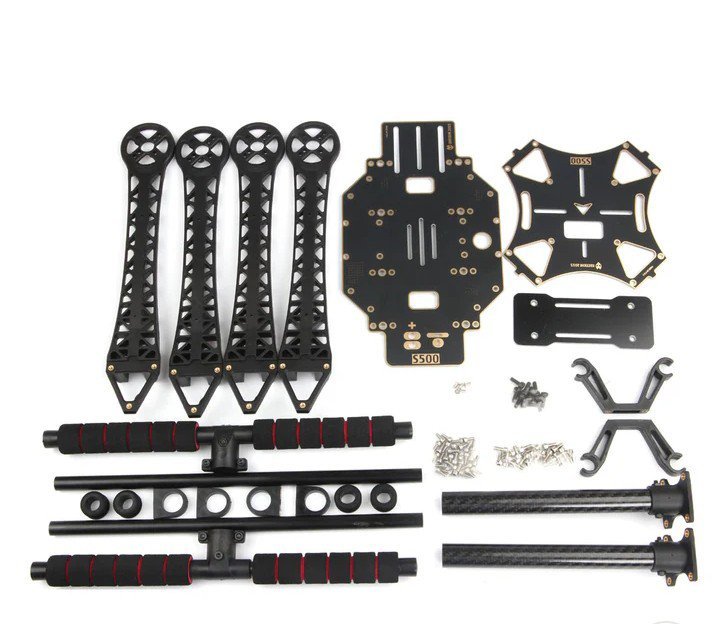

Holybro s500 v2 carbon fiber frame

This is an all-new Quadcopter frame. The S500 comes with landing gear, suitable for any quadcopter builds. This kit is easy to assemble.

This S500 Quadcopter Frame is made from Glass Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

The S500 has strong, light, and have a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESCs to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribuition Board) and makes the mounting clean and neat. The S500 Quadcopter frameis highly flexible frame during mounting of various components flight like controller, battery, etc.

Recommendation Combination (Not Included):

Flight Controller – Pixhawk 6C, Pixhawk 6X, Pixhawk 5x, Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 v5
Power Module – PM02D, PM03D Power Module, PM02 V3,
GPS – DroneCAN M8N/M9N GPS, Holybro M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)
Payload: 1500g (without Battery, 70% Throttle)
Flight time: ~18 minutes hover with no additional payload. Tested with a 5000mAh Battery
